Opentracing

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

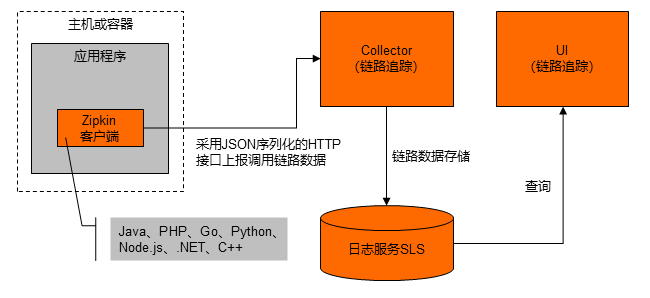

func getTracer(serviceName string, ip string) *zipkin.Tracer {
  // create a reporter to be used by the tracer
  reporter := httpreporter.NewReporter("http://tracing-analysis-dc-hz.aliyuncs.com/adapt_aokcdqnxyz@123456ff_abcdef123@abcdef123/api/v2/spans")
  // set-up the local endpoint for our service
  endpoint, _ := zipkin.NewEndpoint(serviceName, ip)
  // set-up our sampling strategy 设置采样率
  sampler := zipkin.NewModuloSampler(1)
  // initialize the tracer
  tracer, _ := zipkin.NewTracer(
    reporter,
    zipkin.WithLocalEndpoint(endpoint),
    zipkin.WithSampler(sampler),
  )
  return tracer;
}

1
2
3
4
5
6
	// tracer can now be used to create spans.
	span := tracer.StartSpan("some_operation")
	// ... do some work ...
	// span 完成，必须调用 finish
	span.Finish()
	// Output:

1
2
3
	childSpan := tracer.StartSpan("some_operation2", zipkin.Parent(span.Context()))
		// ... do some work ...
	childSpan.Finish()

1
childSpan.Tag("http.status_code", statusCode)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
   Client Span                                                Server Span
┌──────────────────┐                                       ┌──────────────────┐
│                  │                                       │                  │
│   TraceContext   │           Http Request Headers        │   TraceContext   │
│ ┌──────────────┐ │          ┌───────────────────┐        │ ┌──────────────┐ │
│ │ TraceId      │ │          │ X-B3-TraceId      │        │ │ TraceId      │ │
│ │              │ │          │                   │        │ │              │ │
│ │ ParentSpanId │ │ Inject   │ X-B3-ParentSpanId │Extract │ │ ParentSpanId │ │
│ │              ├─┼─────────>│                   ├────────┼>│              │ │
│ │ SpanId       │ │          │ X-B3-SpanId       │        │ │ SpanId       │ │
│ │              │ │          │                   │        │ │              │ │
│ │ Sampled      │ │          │ X-B3-Sampled      │        │ │ Sampled      │ │
│ └──────────────┘ │          └───────────────────┘        │ └──────────────┘ │
│                  │                                       │                  │
└──────────────────┘                                       └──────────────────┘

1
2
3
4
5
req, _ := http.NewRequest("GET", "/", nil)
b3.InjectHTTP(req)(sp.Context())

b.ResetTimer()
_ = b3.ExtractHTTP(copyRequest(req))

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
import (
	"context"
	"errors"
	"fmt"
	"io"
	"time"

	"github.com/opentracing/opentracing-go"
	"github.com/opentracing/opentracing-go/log"
	"github.com/uber/jaeger-client-go"
	jaegercfg "github.com/uber/jaeger-client-go/config"
)
// initJaeger 将 jaeger tracer 设置为全局 tracer
func initJaeger(service string) io.Closer {
	cfg := jaegercfg.Configuration{
		// 将采样频率设置为 1，每一个 span 都记录，方便查看测试结果
		Sampler: &jaegercfg.SamplerConfig{
			Type:  jaeger.SamplerTypeConst,
			Param: 1,
		},
		Reporter: &jaegercfg.ReporterConfig{
			LogSpans: true,
			// 将 span 发往 jaeger-collector 的服务地址
			CollectorEndpoint: "http://localhost:14268/api/traces",
		},
	}
	closer, err := cfg.InitGlobalTracer(service, jaegercfg.Logger(jaeger.StdLogger))
	if err != nil {
		panic(fmt.Sprintf("ERROR: cannot init Jaeger: %v\n", err))
	}
	return closer
}

1
2
3
4
5
6
7
8
9
10
11
12
13
func main() {
	closer := initJaeger("in-process")
	defer closer.Close()
	// 获取 jaeger tracer
	t := opentracing.GlobalTracer()
	// 创建 root span
	sp := t.StartSpan("in-process-service")
	// main 执行完结束这个 span
	defer sp.Finish()
	// 将 span 传递给 Foo
	ctx := opentracing.ContextWithSpan(context.Background(), sp)
	Foo(ctx)
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
func Foo(ctx context.Context) {
    // 开始一个 span, 设置 span 的 operation_name=Foo
	span, ctx := opentracing.StartSpanFromContext(ctx, "Foo")
	defer span.Finish()
	// 将 context 传递给 Bar
	Bar(ctx)
	// 模拟执行耗时
	time.Sleep(1 * time.Second)
}
func Bar(ctx context.Context) {
    // 开始一个 span，设置 span 的 operation_name=Bar
	span, ctx := opentracing.StartSpanFromContext(ctx, "Bar")
	defer span.Finish()
	// 模拟执行耗时
	time.Sleep(2 * time.Second)

	// 假设 Bar 发生了某些错误
	err := errors.New("something wrong")
	span.LogFields(
		log.String("event", "error"),
		log.String("message", err.Error()),
	)
	span.SetTag("error", true)
}

1
2
3
4
5
6
7
func StartSpanFromContextWithTracer(ctx context.Context, tracer Tracer, operationName string, opts ...StartSpanOption) (Span, context.Context) {
	if parentSpan := SpanFromContext(ctx); parentSpan != nil {
		opts = append(opts, ChildOf(parentSpan.Context()))
	}
	span := tracer.StartSpan(operationName, opts...)
	return span, ContextWithSpan(ctx, span)
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
const (
    endpoint_url = "http://localhost:9411/api/v1/spans"		//Zipkin-UI 的 URL
    host_url = "localhost:5051"		// 作为标识
    service_name_cache_client = "cache service client"
    service_name_call_get = "callGet"
)

func newTracer () (opentracing.Tracer, zipkintracer.Collector, error) {
	// 创建 HTTP Collector，用来收集跟踪数据并将其发送到 Zipkin-UI
	collector, err := openzipkin.NewHTTPCollector(endpoint_url)
	if err != nil {
		return nil, nil, err
	}
	// 创建了一个记录器 (recorder) 来记录端口上的信息
	recorder :=openzipkin.NewRecorder(collector, true, host_url, service_name_cache_client)

	// 使用记录器 recorder 创建了一个新的跟踪器 (tracer)
	tracer, err := openzipkin.NewTracer(
		recorder,
		openzipkin.ClientServerSameSpan(true))

	if err != nil {
		return nil,nil,err
	}

	// 设置全局 tracer
	opentracing.SetGlobalTracer(tracer)

	return tracer,collector, nil
}


func DoRPCMethods(c pb.HelloServiceClient) ( []byte, error) {
    span := opentracing.StartSpan("RPC-CALL-METHOD-NAME")
    defer span.Finish()
    time.Sleep(5*time.Millisecond)
	// Put root span in context so it will be used in our calls to the client
	// 通过 opentracing.ContextWithSpan 拿到传递的 ctx
    ctx := opentracing.ContextWithSpan(context.Background(), span)
    //ctx := context.Background()
    getReq:=&pb.RPCMethodReq{}
    getResp, err :=RPCMethod(ctx, getReq)
    value := getResp.Value
    return value, err
}

func main(){
	// 初始化 tracer
	tracer, collector, err :=newTracer()
	if err != nil {
		panic(err)
	}
	defer collector.Close()
	// 注意这里使用了拦截器 OpenTracingClientInterceptor
	connection, err := grpc.Dial(host_url,
		grpc.WithInsecure(), grpc.WithUnaryInterceptor(otgrpc.OpenTracingClientInterceptor(tracer, otgrpc.LogPayloads())),
		)
	if err != nil {
		panic(err)
	}
	defer connection.Close()
	client := pb.NewHelloServiceClient(connection)
	err := DoRPCMethods(client)
	......
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
func main(){
    connection, err := net.Listen(network, host_url)
	if err != nil {
		panic(err)
	}
	tracer,err  := newTracer()
	if err != nil {
		panic(err)
	}
	opts := []grpc.ServerOption{
		grpc.UnaryInterceptor(
			otgrpc.OpenTracingServerInterceptor(tracer,otgrpc.LogPayloads()),
		),
	}
	srv := grpc.NewServer(opts...)
	cs := initCache()
	pb.RegisterCacheServiceServer(srv, cs)

	err = srv.Serve(connection)
	if err != nil {
		panic(err)
	}
}

const service_name_db_query_user = "QueryDatabase"

func (c *HelloService) RPCMethod(ctx context.Context, req *pb.GetReq) (*pb.GetResp, error) {
    if parent := opentracing.SpanFromContext(ctx); parent != nil {
        pctx := parent.Context()
        if tracer := opentracing.GlobalTracer(); tracer != nil {
            mysqlSpan := tracer.StartSpan(service_name_db_query_user, opentracing.ChildOf(pctx))
            defer mysqlSpan.Finish()
            //do some operations
            time.Sleep(time.Millisecond * 10)
        }
    }
    key := req.GetKey()
    value := c.storage[key]
    fmt.Println("get called with return of value:", value)
    resp := &pb.GetResp{Value: value}
    return resp, nil
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
// OpenTracingClientInterceptor returns a grpc.UnaryClientInterceptor suitable
// for use in a grpc.Dial call.
//
// For example:
//
// conn, err := grpc.Dial(
// address,
// ..., // (existing DialOptions)
// grpc.WithUnaryInterceptor(otgrpc.OpenTracingClientInterceptor(tracer)))
//
// All gRPC client spans will inject the OpenTracing SpanContext into the gRPC
// metadata; they will also look in the context.Context for an active
// in-process parent Span and establish a ChildOf reference if such a parent
// Span could be found.
func OpenTracingClientInterceptor(tracer opentracing.Tracer, optFuncs ...Option) grpc.UnaryClientInterceptor {
	otgrpcOpts := newOptions()
	otgrpcOpts.apply(optFuncs...)
	return func(
		ctx context.Context,
		method string,
		req, resp interface{},
		cc *grpc.ClientConn,
		invoker grpc.UnaryInvoker,
		opts ...grpc.CallOption,
	) error {
		var err error
		var parentCtx opentracing.SpanContext
		if parent := opentracing.SpanFromContext(ctx); parent != nil {
			parentCtx = parent.Context()
		}
		if otgrpcOpts.inclusionFunc != nil &&
			!otgrpcOpts.inclusionFunc(parentCtx, method, req, resp) {
			return invoker(ctx, method, req, resp, cc, opts...)
		}
		clientSpan := tracer.StartSpan(
			method,
			opentracing.ChildOf(parentCtx),
			ext.SpanKindRPCClient,
			gRPCComponentTag,
		)
		defer clientSpan.Finish()
		// 调用 injectSpanContext
		ctx = injectSpanContext(ctx, tracer, clientSpan)
		if otgrpcOpts.logPayloads {
			clientSpan.LogFields(log.Object("gRPC request", req))
		}
		err = invoker(ctx, method, req, resp, cc, opts...)
		if err == nil {
			if otgrpcOpts.logPayloads {
				clientSpan.LogFields(log.Object("gRPC response", resp))
			}
		} else {
			SetSpanTags(clientSpan, err, true)
			clientSpan.LogFields(log.String("event", "error"), log.String("message", err.Error()))
		}
		if otgrpcOpts.decorator != nil {
			otgrpcOpts.decorator(clientSpan, method, req, resp, err)
		}
		return err
	}
}

//injectSpanContext 方法
func injectSpanContext(ctx context.Context, tracer opentracing.Tracer, clientSpan opentracing.Span) context.Context {
	md, ok := metadata.FromOutgoingContext(ctx)
	if !ok {
		md = metadata.New(nil)
	} else {
		md = md.Copy()
	}
	mdWriter := metadataReaderWriter{md}
	err := tracer.Inject(clientSpan.Context(), opentracing.HTTPHeaders, mdWriter)
	// We have no better place to record an error than the Span itself :-/
	if err != nil {
		clientSpan.LogFields(log.String("event", "Tracer.Inject() failed"), log.Error(err))
	}
	return metadata.NewOutgoingContext(ctx, md)
}
